They love steam locos at Rapido, and most of them follow similar design principles. The Andrew Barclay 0-4-0 fireless well and truly takes the design rulebook and throws it out the window.
As the railways established themselves as a reliable method to transport goods one problem came to the forefront – fire. Steam locos fundamentally need a heat source created from some form of fire to turn water into steam. However, this fire, alongside sparks emitted from the chimney, caused great concern in environments where munitions, fuel or other flammable materials were being moved or stored
The solution is a locomotive that won’t spark, or have a naked flame on board. Thankfully, some bright spark had the clever idea of harnessing steam power in a large rechargeable steam reservoir, which would sit in the place of the boiler of a conventional steam locomotive. This reservoir would be filled with a mix of boiling water and steam at high pressure. As the locomotive was used the steam would be used and thus the pressure in the reservoir would drop. This in turn allowed the water to start to boil replacing the steam that had been used. With this method a locomotive could work for about 4 hours prior to recharging.
The result is a design that has a distinct lack of key features which people associate with more traditional steam locomotives, such as a smokebox and chimney, a firebox, forward-mounted cylinders and coal bunkers or tenders. Its lack of a firebox requires its cylinders to be rear-mounted both to improve efficiency and redistribute the weight of the loco, and its other missing features are simply because they are surplus to requirement.
The largest number of British-built fireless locomotives were constructed by Andrew Barclay & Co. Ltd, and an impressive 114 were built between 1913 and 1961 of varying designs, so it was only fitting that we pick the most numerous of Barclay’s prototypes, the ‘Caledonia’, to produce as the very first Ready-to-run OO Gauge British Fireless loco. These industrial oddities survived far longer than most British Railways and industrial coal-fired steam locos with many examples working into the 1980s and even into the 1990s with many examples later preserved around the country.

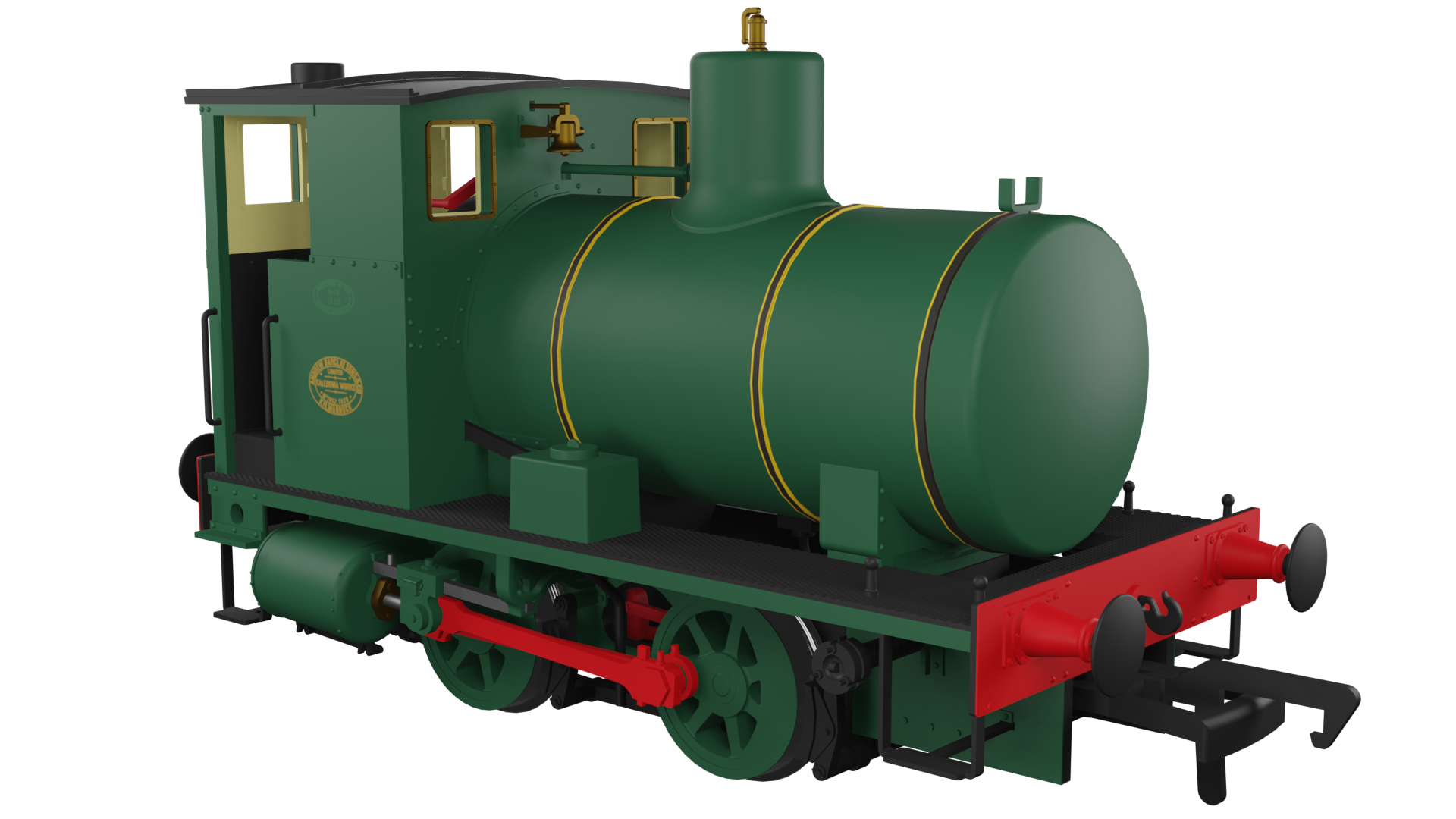

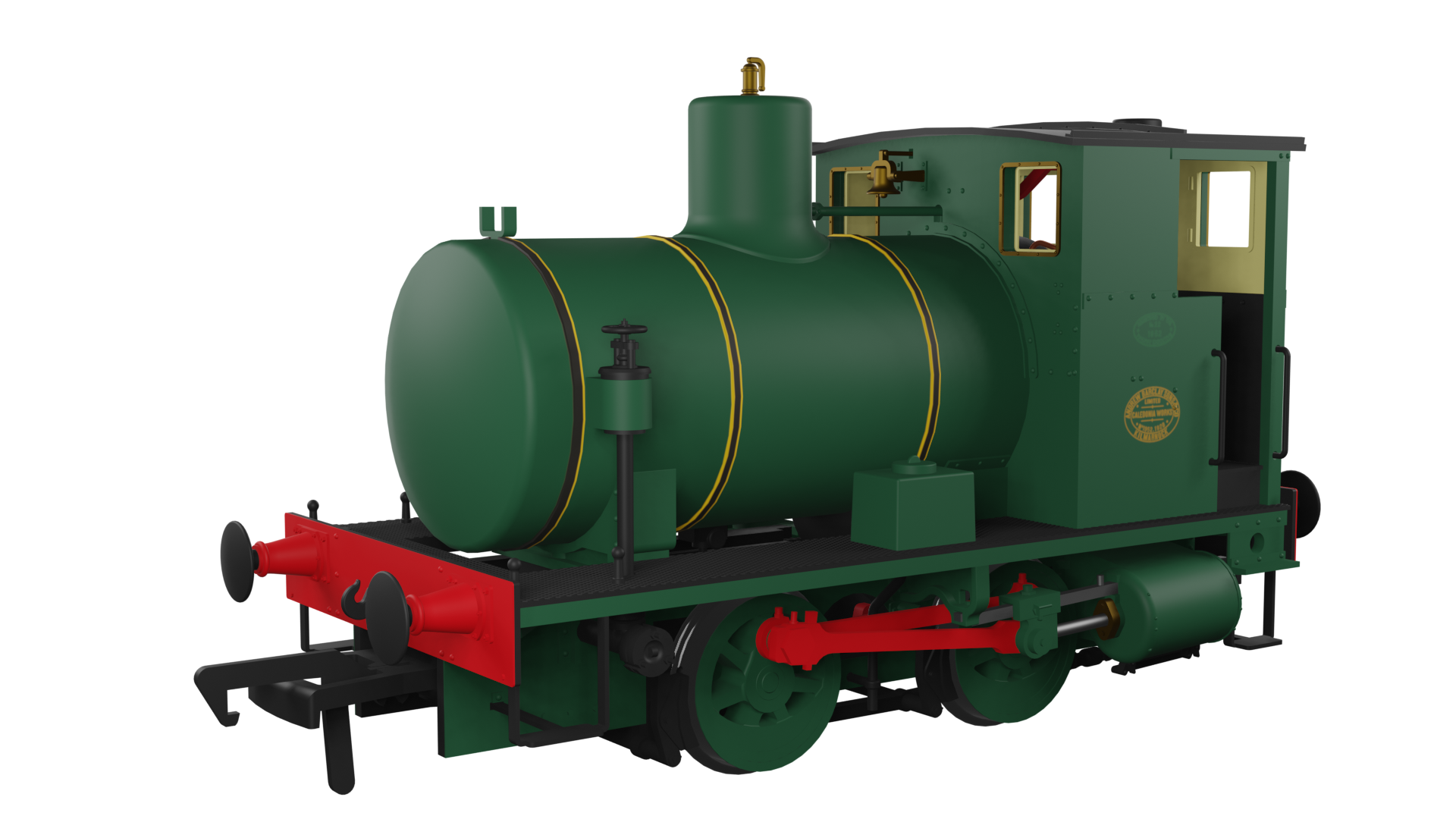

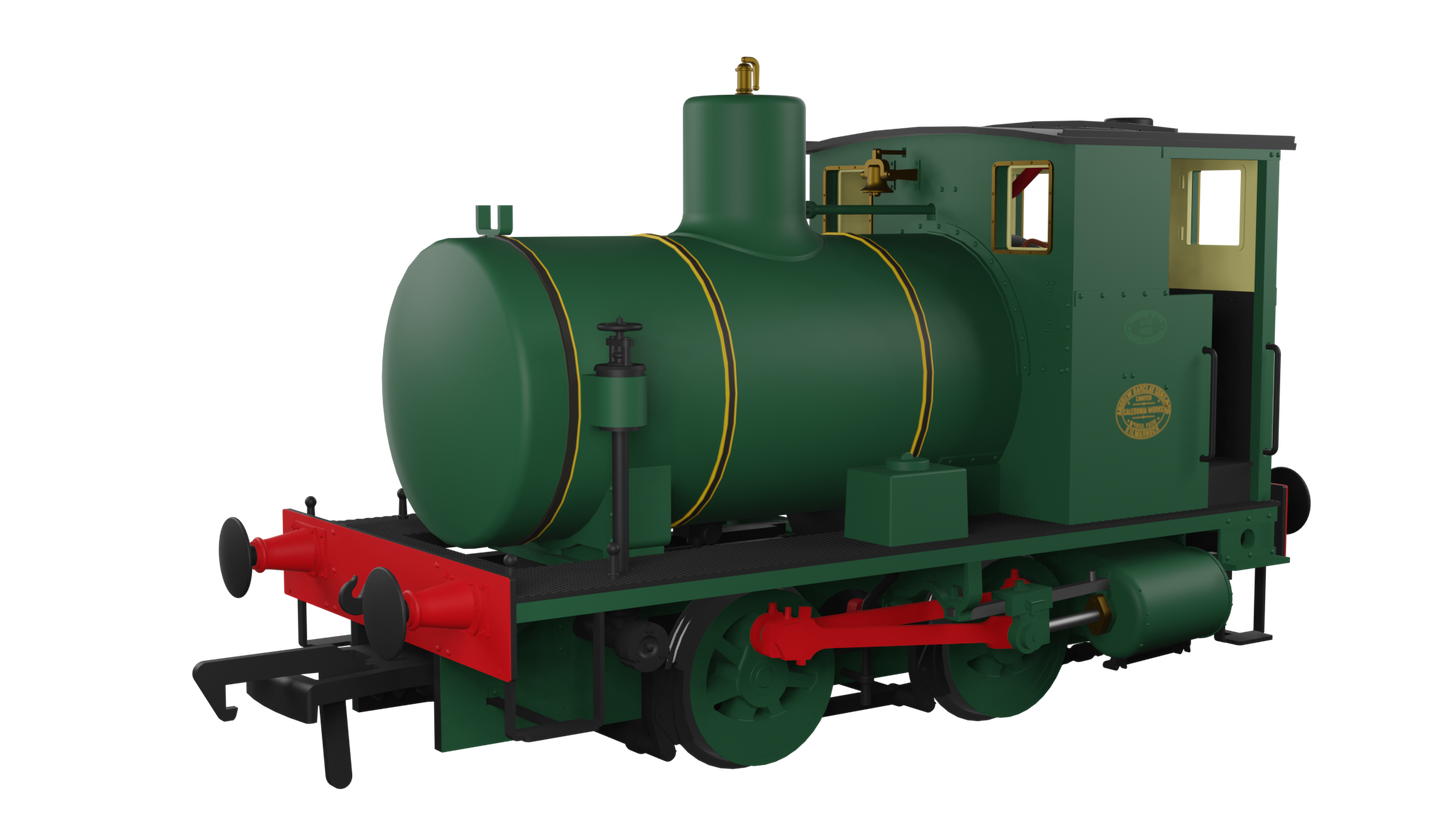

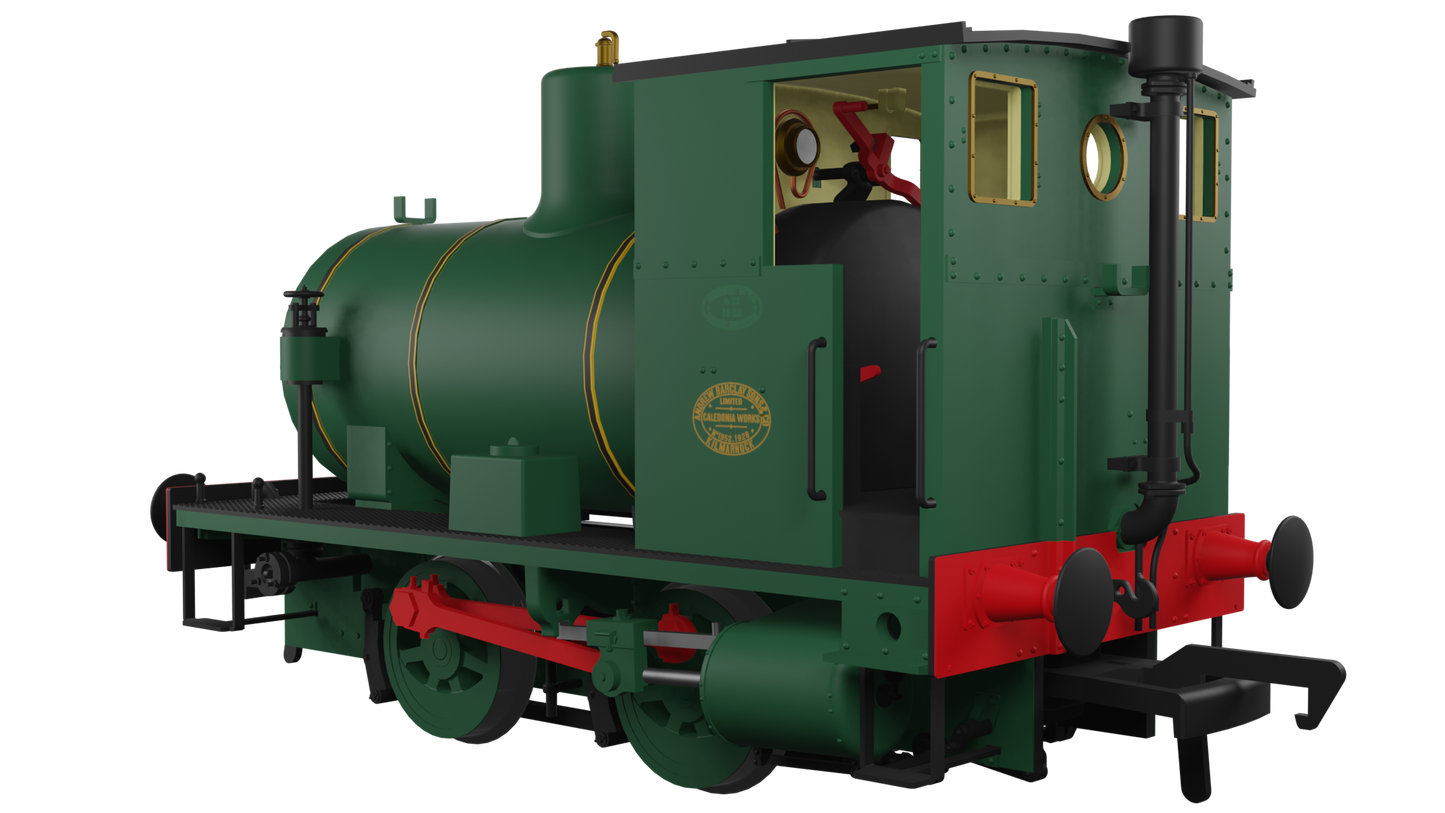

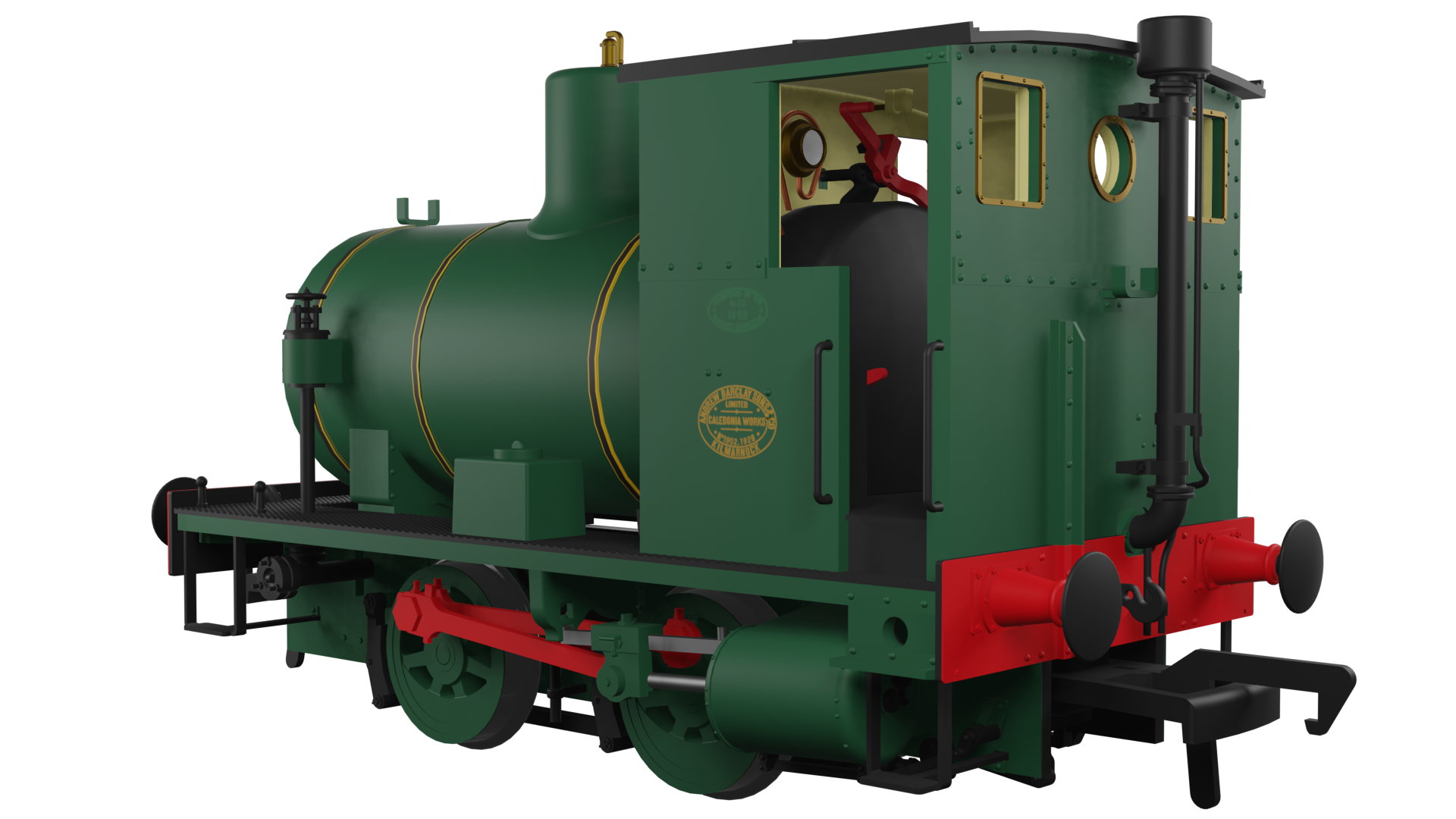

These highly detailed models feature a smooth-running mechanism, factory-installed speaker, NEM Coupler pockets, an ESU E24 decoder socket, and absolutely no firebox flicker. Individual models will feature variations of reservoir support buffer guides, and reducing valves, and there are some versions with an extra tank and injector.
The models can then be personalised with a selection of interesting Polybag parts too, including oil and electric lamps, cab side windows, low doors, shutters, and full cab doors.
